The BM16 is a compact bench mounted morticer, introducing new levels of accuracy, ease of use and industrial features at an affordable price.

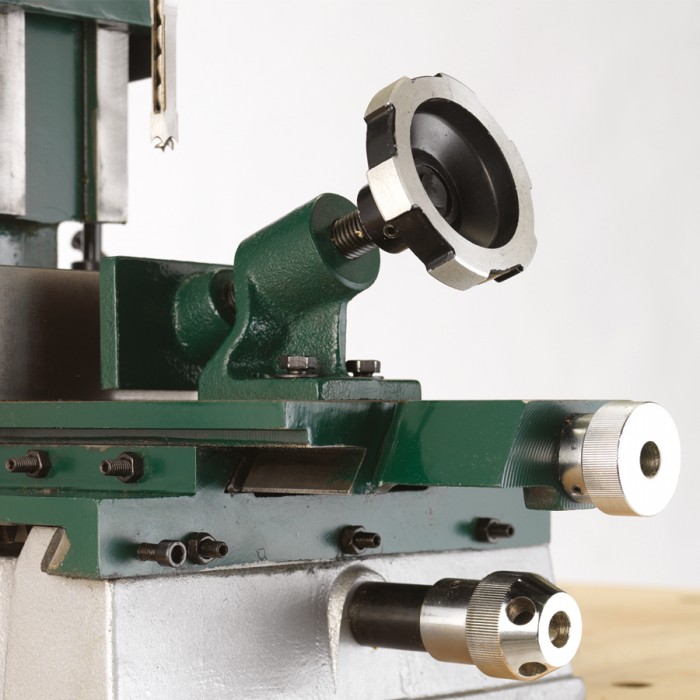

The table is finely ground cast iron and moves smoothly and effortlessly front to back and side to side on machined dovetail slides. To ensure unsurpassed accuracy, the slides are fully adjustable using the easily accessible gib strips. An important feature of the table is the heavy and solid clamp, the likes of which are usually only seen on more industrial machines, which holds workpieces extremely securely, ensuring no movement during operation. The clamp is also repositionable, allowing a wide range of timber sizes to be accommodated.

Movement of the chisel is similarly smooth and accurate, with a gas spring and dovetail slides, which feature adjustable gib strips, allowing cuts to be made with ease and precision.

To further increase accuracy and speed of use, the BM16 also features sideways movement stops as well as vertical movement stops. These stops allow the depth and width of mortices to be set in order to achieve consistent results again and again.





Pillar Drill
Maximum Workpiece Height 120 mm
Maximum Workpiece Depth 130 mm
Maximum Chisel Stroke 70 mm
Chuck Capacity 13 mm
Chisel Capacity 6 - 16 mm
Table size 180 x 157 mm
Machines
Power 1/2 hp
Drive
Motor imput power 370 W
Motor output Power 250 W
General info
Dimensions H700 x W270 x D300 mm
Weight 46 kg

Write a review

Please login or register to review

Sliding Table Morticer BM16

  • Brand: Record Power
  • Product Code: RP-BM16
  • Availability: In Stock
  • Warranty

    5 Years by registering *

  • 447.28 €

  • Ex Tax: 366.62 €
